LEDA

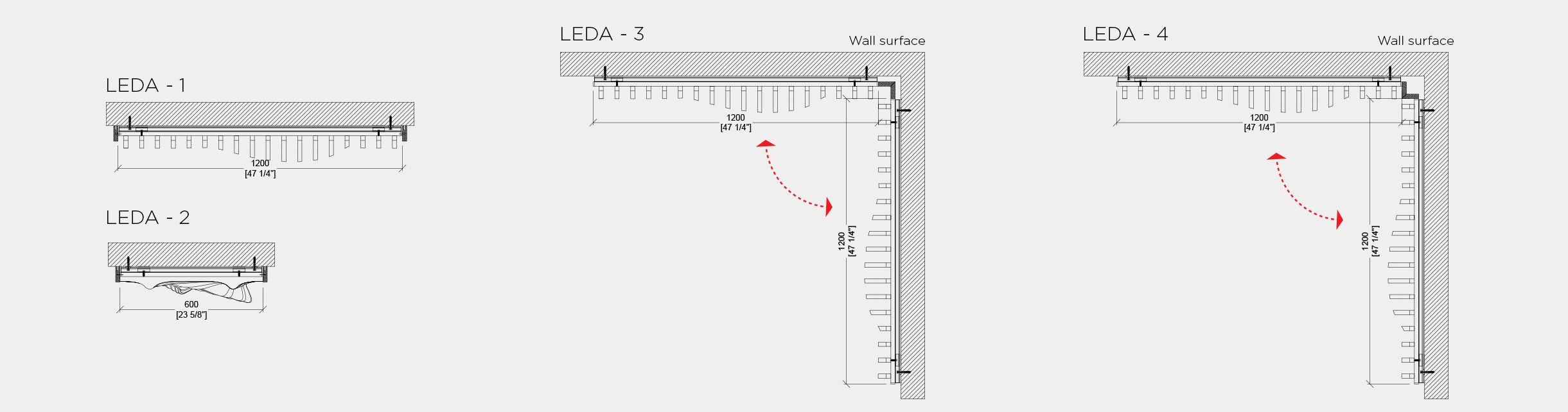

The panels are mounted onto a rail system.
60x120 cm panels come with pre-inserted nuts at the corners on the back of the panel, ready to fix the Z-shaped profiles. Z-shaped profiles for 60x120 cm panels come separately. Using these pre-inserted nuts, Z-shaped profiles are fixed according to the direction of the panel to be hung.

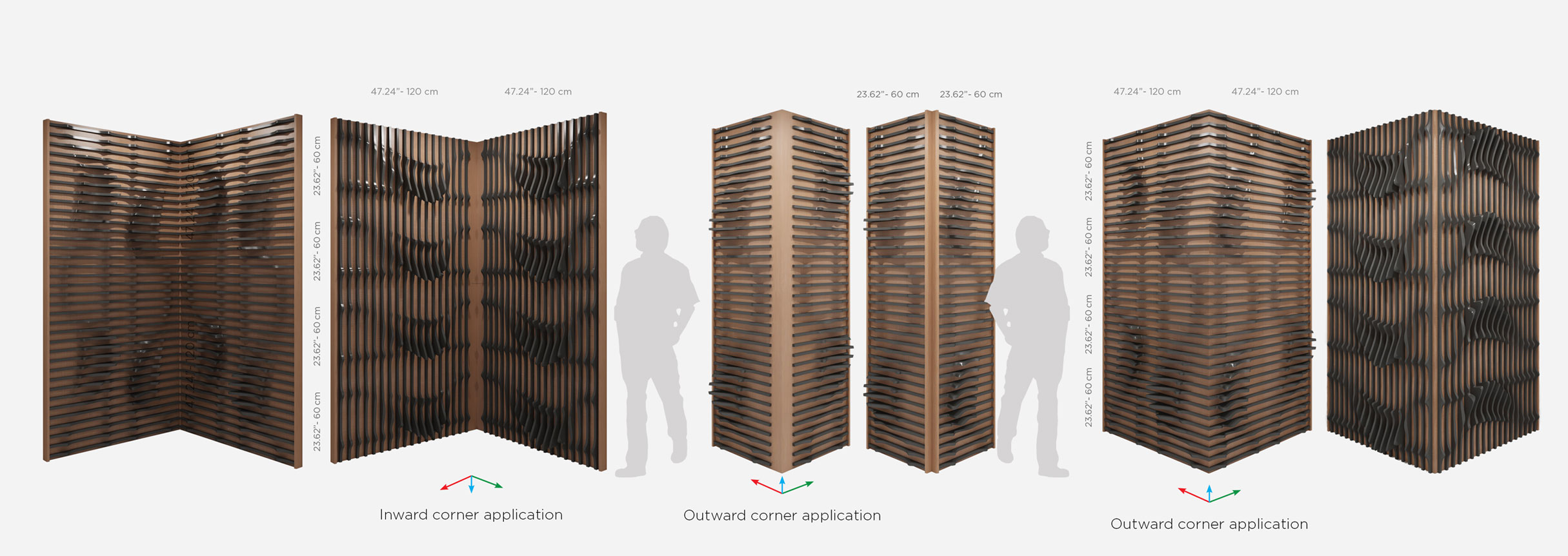

The locations of the Z-shaped profiles are the same for all 60 x 120 panels so that if you change the panel with another 60 x 120 cm Mikodam panel you will not have to change the position of the U-shaped profile on the wall. You can also change the direction of the panels without changing the position of the U-shaped profiles.
While hanging the panels, for the panel at the bottom both lower and upper Z profiles should be used. For the panels above the first row, only Z profiles on the top are used.
Given below is the method of installation for Mikodam panels hanging from the ceiling by using wire ropes. This method is preferred when the panels need to be hung at a distance from the ceiling instead of being directly mounted to it.

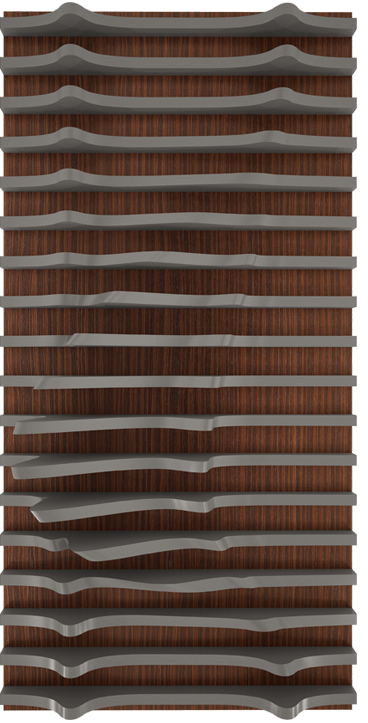

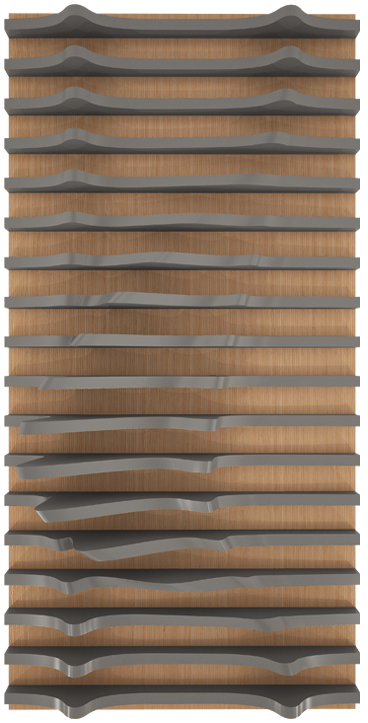

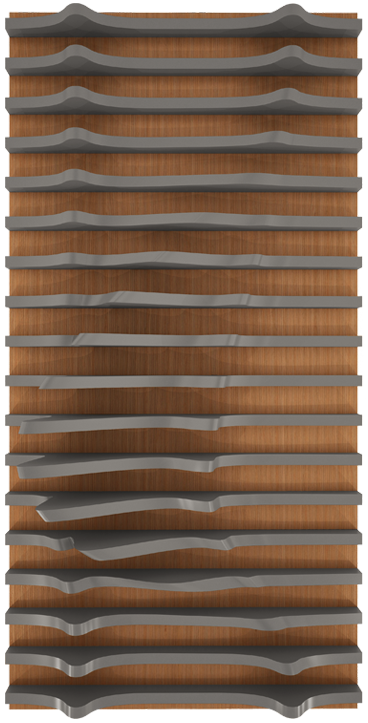

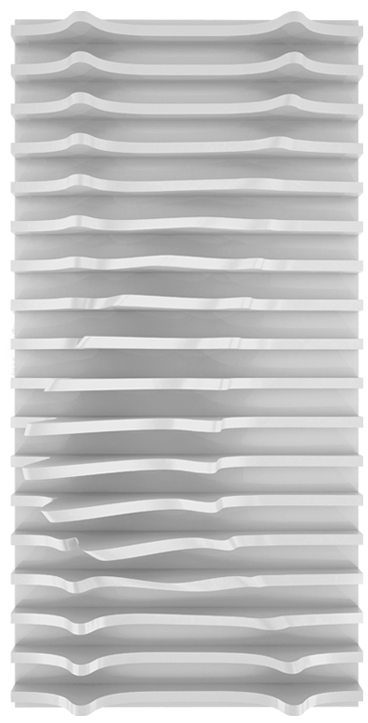

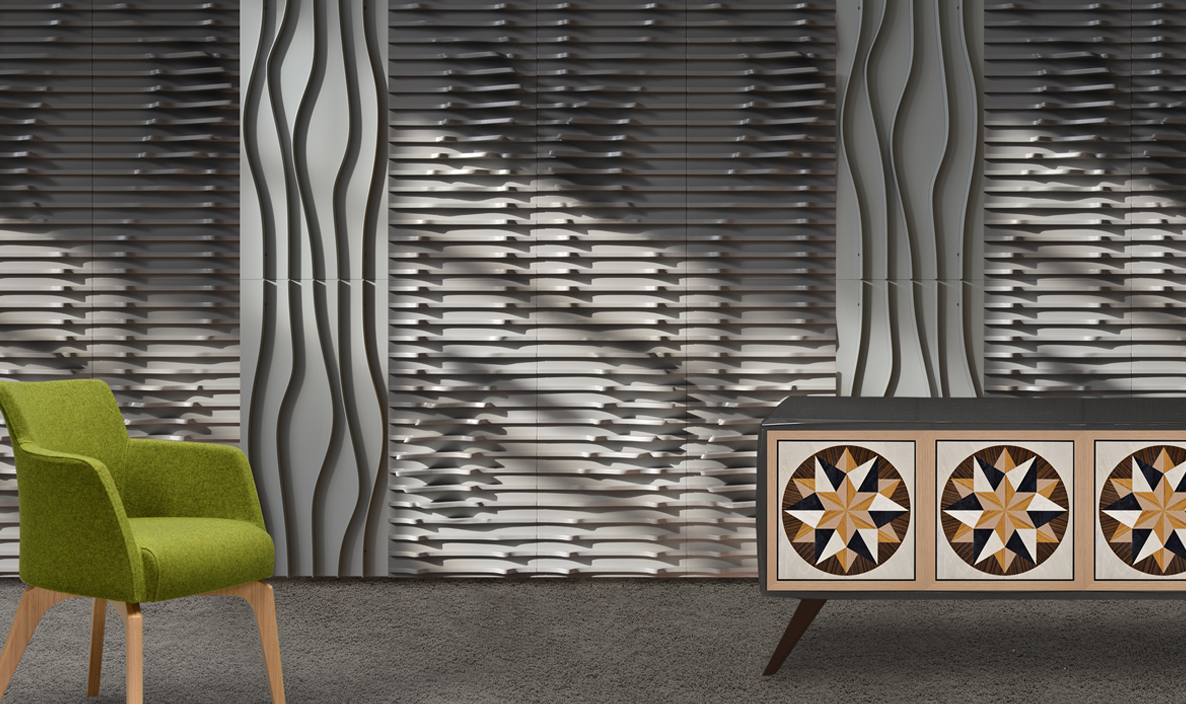

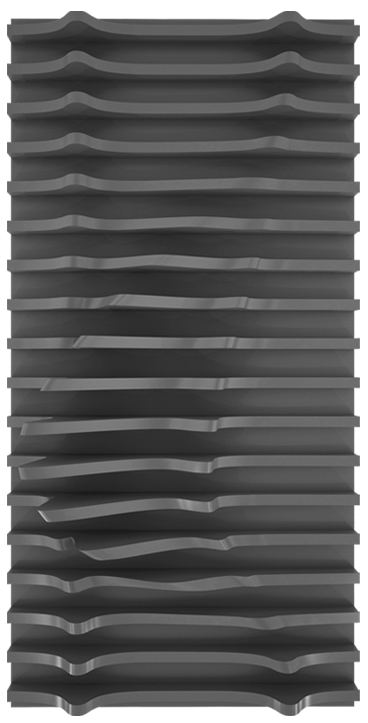

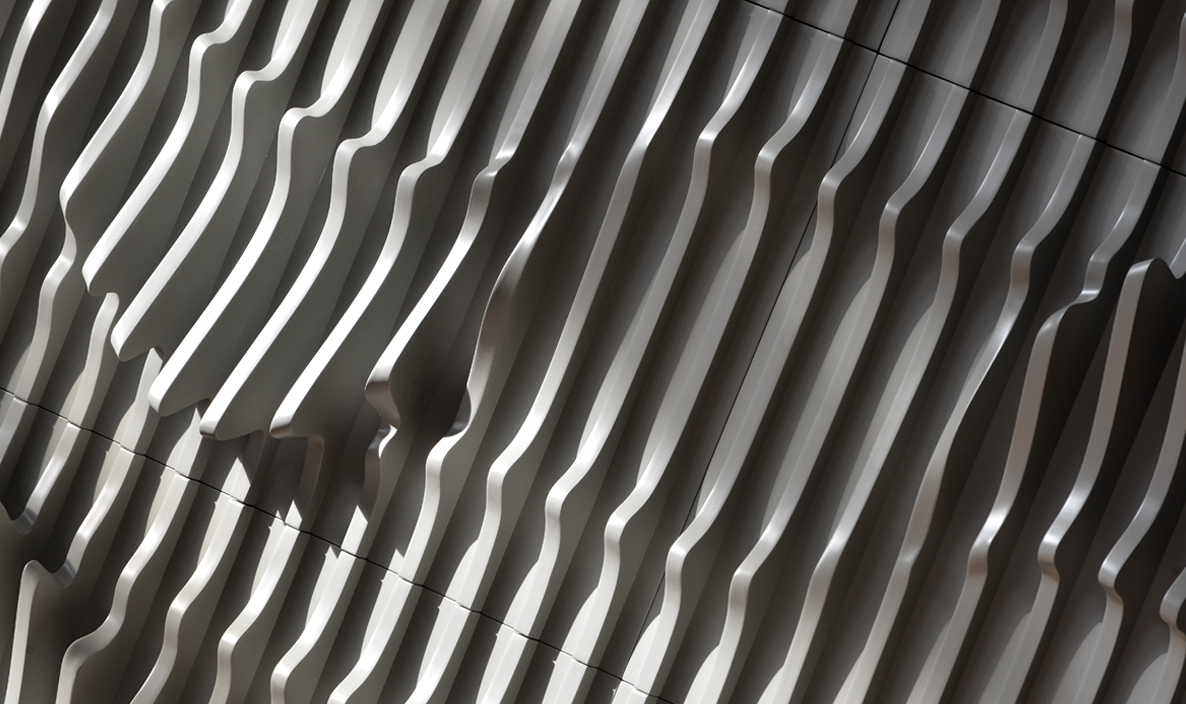

Mikodam 3D wall panels present clever solutions to create your own spaces. Various combinations can be achieved with different color and material alternatives such as natural wood veneer and lacquer. Through rotations, material choices and using different lines together you can create different patterns and breath-taking interiors.
