COLORS & MATERIALS
NEKA is a design for those who like to play with patterns. NEKA comes in two sizes. Each rotation of NEKA’s pieces births a new pattern while its different combinations create unique and modern environments.
PANEL DIMENSIONS
INSTALLATION
60x120 cm panels come with pre-inserted nuts at the corners on the back of the panel, ready to fix the Z-shaped profiles. Z-shaped profiles for 60x120 cm panels comes separately. Using these pre-inserted nuts, Z-shaped profiles are fixed according to the direction of the panel to be hung.
The locations of the Z-shaped profiles are the same for all 60 x 120 panels so that if you change the panel with another 60 x 120 cm Mikodam panel you will not have to change the position of the U-shaped profile on the wall. You can also change the direction of the panels without changiing the position of the U-shaped profiles.
While hanging the panels, both lower and upper z profiles should be used for the panel at the bottom. For the panels above it only the z profiles on the top are used.
The locations of the Z-shaped profiles are the same for all 60 x 120 panels so that if you change the panel with another 60 x 120 cm Mikodam panel you will not have to change the position of the U-shaped profile on the wall. You can also change the direction of the panels without changiing the position of the U-shaped profiles.
While hanging the panels, both lower and upper z profiles should be used for the panel at the bottom. For the panels above it only the z profiles on the top are used.
Given below is the method of installation of our panels hanging on the ceiling by using wire ropes. This method is preferred when the panels need to be hung at a distance from the ceiling instead of being directly mounted to the ceiling.
Various combinations can be achieved with different color and material alternatives such as natural wood veneer (oak, walnut, teak), lacquer, fabric. Through rotations different patterns can be created. This product can be combined with other Mikodam acoustic wall panel lines.
COMBINATIONS

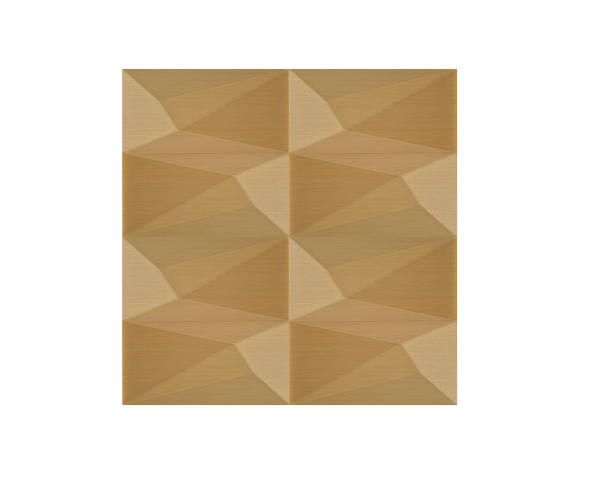

NEKA COMBINATIONS 01
NEKA COMBINATIONS 02
NEKA COMBINATIONS 03
NEKA COMBINATIONS 04
NEKA COMBINATIONS 05
NEKA COMBINATIONS 06
ACOUSTIC PERFORMANCE
The geometry, the mass and the material of the surfaces provides effective sound scattering. The use of this product on walls and ceilings will allow even distribution of sound within the room where it is applied and will prevent acoustical defects causing disturbance due to harsh sound reflections, acoustical glare, echo or flutter echo.
NEKA Module provides different absorption characteristics for its alternative perforation ratios. T1 can be used where absorption is necessary on wall surfaces and to provide optimum reverberation desired for a room. T4 can be used where absorption is necessary on wall surfaces and to provide optimum reverberation desired for a room. T6 can be used where medium absorption is demanded for low frequency range, especially suited for electroacoustic sound reinforcement with music material of dominant low-frequency energy content in such rooms.

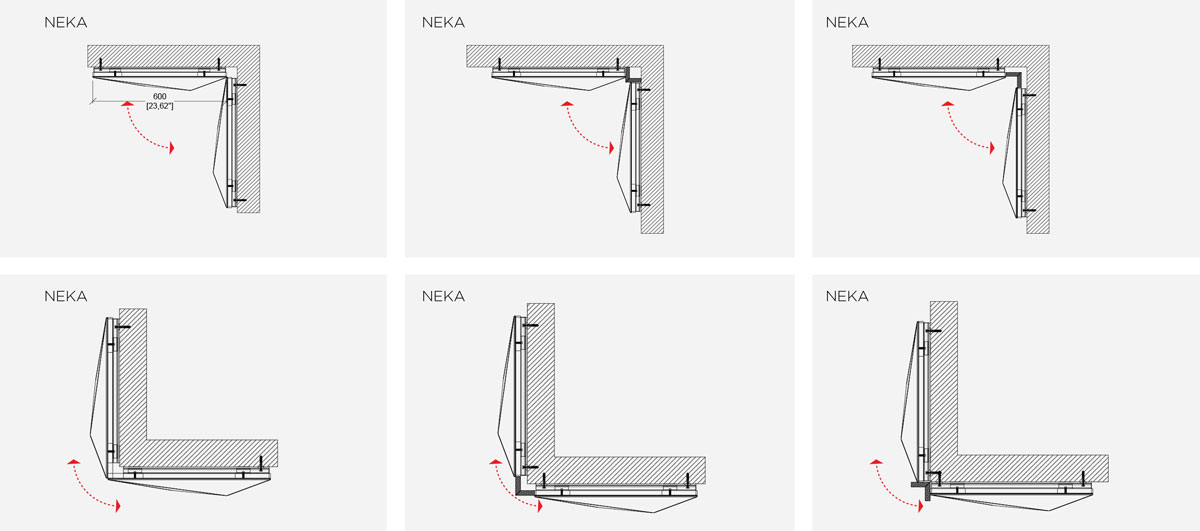

CORNER IMPLEMENTATION
